SysTech LO-NOISE™ Attenuated Fan Packages

SysTech LO-NOISE™ Attenuated Fan Assemblies are designed to meet demanding noise specifications, Code and client requirements that will attenuate noise while removing heated air from buildings. These custom designed low noise fan units, labeled as LO-NOISE, that reduce noise exiting from buildings that house engines, compressors, fans and other rotating equipment that might have an impact on the surrounding environment. These packages or assemblies will come complete with exhaust or supply fan, an automatic or manual damper, intake or discharge hood, roof curb where required and silencer designed for a specific noise level.  Typical control options include Variable Frequency Drives, temperature sensor or opacity meter.  They are constructed for easy “drop-in” installation with easy access to internal components if maintenance is required.

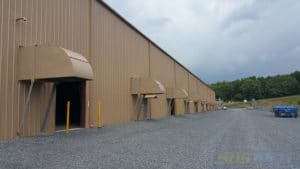

SysTech Supply Fan Modules


General Specifications

SysTech LO-NOISE™ Supply Fan Modules

  • Low velocity intake hoods with Integral bird-screen
  • Air filter assembly – Side access V-bank with MERV 8 replaceable filters
  • Module discharge
  • Manual or gravity backdraft dampers
  • Two and four-way diffusers
  • Custom paint to match

LO-NOISE™ Section

  • Custom silencer
  • Designed to meet site specific Permissible Noise Level (PNL)
  • Standard size ranging from 24″ to 60″ length
  • Silencers designed with integral perforated acoustical baffles
  • Up to 8 lbs/ft³ of acoustical media
  • Internal layer of fiberglass cloth to prevent media erosion
  • Acoustic liners on intake hood

Powered Section

  • Fan sizes ranging from 24″ to 60″ diameter standard
  • Motors up to 20 HP standard
  • Motors including Hazardous Rated for Class 1, Division 1, Group D environments
  • Non-sparking fan assembly is standard
  • Adjustable pitch propellers are standard

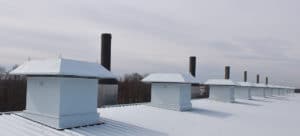

SysTech Exhaust Fan Modules


General Specifications

SysTech LO-NOISE™ Exhaust Fan Modules

  • Weather hood with an internal bird-screen
  • Custom roof curb
  • Integral damper shelf
  • Designed for application specific roof-slope
  • Gravity or manual backdraft damper available
  • Custom paint to match

LO-NOISE™ Section

  • Silencer – designed to meet site specific PNL
  • Standard size ranging from 24″ to 72″
  • Silencers designed with integral perforated acoustical baffles
  • Up to 8 lbs/ft³ of acoustical media
  • Internal layer of fiberglass cloth to prevent media erosion
  • Acoustical lining in hood
  • Acoustical liner in roof curb

Powered Section

  • Fan sizes ranging from 24″ to 60″ diameter
  • Motors up to 20 HP
  • Motor including Hazardous Rated for Class1, Division1, Group environments
  • Adjustable pitch propellers are standard
  • Non-sparking fan assembly is standard

SysTech Rapid Purge™ Fan Modules


General Specifications

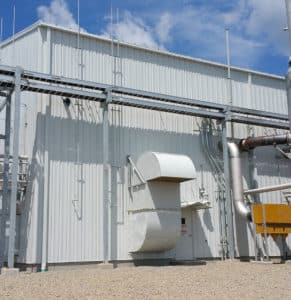

Supply fan assembly with "Gooseneck" intake hood for hazardous gas purge.

SysTech Rapid Purge™ Fan Module

  • Vapor removal and dilution – modules to “sweep” or purge detected hazardous gases
  • Floor level supply and exhaust unit designs
  • High entry/exhaust “Goose Neck” design option
  • Gas LEL and oxygen deficiency sensor control suite available
  • Custom paint to match

LO-NOISE™ Section

  • Custom Silencer
  • Designed to meet site specific Permissible Noise Levels (PNL)
  • Standard size ranging from 24″ to 60″ length

Powered Section

  • Fan sizes up to 84″ diameter
  • Motors up to 20 HP
  • Motors including Hazardous Rated for Class1, Division1, Group D environments
  • Adjustable pitch propellers are standard
  • Non-sparking fan assembly is standard

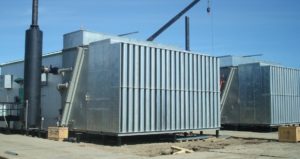

SysTech LO-NOISE™ Compressor Cooler Silencers


General Specifications

SysTech LO-NOISE™ Compressor Cooler Silencer

  • Airflow rates up to 1,000,000 CFM
  • Sizes from 96″ x 96″ to 360″ x 360″ cross sections
  • Drop-in modular or one-piece construction, including skid-mount assemblies
  • Construction materials – carbon steel, galvanized steel, stainless steel or aluminum
  • Decibel level reductions to 20 dBA with standard designs
  • Custom paint to match

SysTech LO-NOISE™ Air Handling Unit


General Specifications

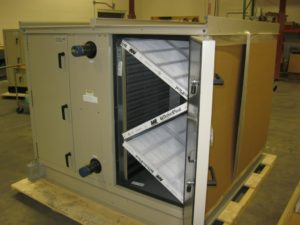

Cutom air handler with 4-inch THK walls for noise attenuation

SysTech LO-NOISE™ Air Handling Unit

  • Lo-Noise™ designs – up to 4 inch double wall construction
  • Attenuated sound levels to customer’s specification
  • Explosion Proof rated units available
  • Class 1, Division 1, Group D
  • Class 1, Division 2, Group D
  • Heating capacities up to 1,000,000 BTUH
  • Custom control packages available
  • Side access V-bank filter housing with MERV 8 replaceable filters
  • Heating and cooling designs available

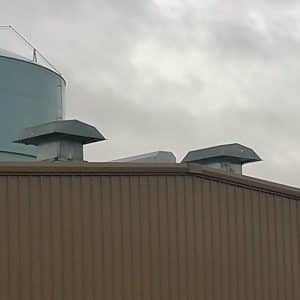

SysTech Series II Fan Modules


General Specifications

SysTech LO-NOISE™ Series II Fan Module

  • Hooded exhaust or louvered intake
  • Manual or gravity backdraft dampers
  • Custom paint to match
  • Unit shipped as one piece

LO-NOISE™ Section

  • Custom Silencer
  • Designed to meet site specific Permissible Noise Level (PNL)
  • Standard sizes ranging from 24″ to 48″ length

Powered Section

  • Fan sizes ranging from 24″ to 48″ diameter
  • Motors up to 10 HP standard
  • Motors including Hazardous Rated for Class1, Division1, Group D environments
  • Adjustable pitch propellers are standard
  • Non-sparking fan assembly is standard

Contact SysTech today. Send us an email or call us at 800-456-9460.
