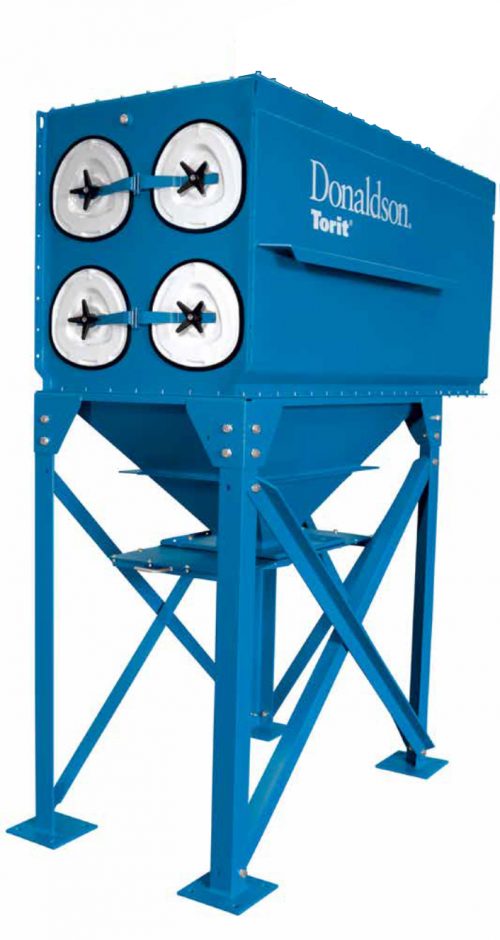

Donaldson Torit – Downflo Evolution – Model DFE 2-4

Application Assistance Included With Every Product

Performance Range: 1,000 to 4,000 CFM*

*Dependent on the airstream constituents and filter media selected

RAPID BUILD means 5 days to ship!


Ships in 5 days!

Description

Performance Range: 1,000 to 4,000 CFM.

DFE 2-4 (Product Code AG8408302) includes:

  • Standard legs and hopper to accommodate a 55-gallon drum.
  • 55-gallon drum cover included (drum by others).
  • Left and right-hand side outlet.
  • Four (4) Ultra-Web Filters – 1016 sq. ft. filter media.
  • Covered power hole for integral fan mounting ( fan is not included in pricing but is available depending upon horsepower required).
  • 3 HP Fan motor with exhaust grill.
  • Standard paint finish.
  • Type 4 pulse control box w/ timer board and Magnehelic gauge (shipped loose).
  • Sprinkler tap on the front face.
  • The size of the unit is 110″ H x 48″ W x 75″ D with a 55-Gallon drum feature.

Options:

  • Ultra-web Flame retardant or spun bound filters
  • Delta-P & Delta-P Plus controls
  • 5, 7.5, 10, 15 HP fan motors
  • Fan silencer
  • Fan damper
  • Hose drum pack

Reviews

There are no reviews yet.

Be the first to review “Donaldson Torit – Downflo Evolution – Model DFE 2-4”

Additional Resources:

Product Literature #1  Donaldson DFE Brochure

Product Literature # 2  Donaldson Torit General Brochure

Product Literature # 3 Donaldson Torit DFE 2-4 & 3-6 Manual

Product Literature # 4 Donaldson Torit DFE 2-8 to 5-80 Manual
