Donaldson Torit – Downflo Evolution – Model DFE 3-12

Rapid Build means 5 days to ship ARO!

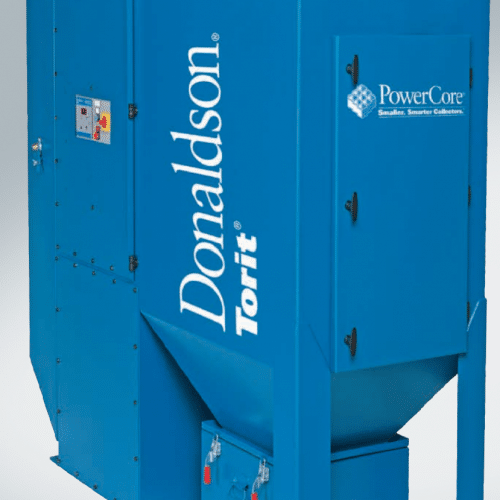

Collector shown is representative only of the DFE model, check text below for actual size.

More SysTech Documentation:

Technology Beats Marketing When Evaluating Dust Collectors

Ships in 5 days!


Performance Range: 4,500 CFM to 9,500 CFM

DFE 3-12 (Part No. AG8408601) includes:

  • Standard legs and hopper to accommodate a 55-gallon drum
  • 55-gallon drum cover included (drum by others)
  • Left and right-hand side outlet
  • Twelve (12) Ultra-Web Filters – 3,048 sq. ft. filter media
  • Covered power hole for integral fan mounting ( fan is not included in pricing but is available depending upon horsepower required)
  • 3 HP fan motor with exhaust grill.
  • Standard paint finish
  • Type 4 pulse control box w/ timer board and Magnehelic gauge (shipped loose)
  • Sprinkler tap on the front face
  • The size of unit is 140″ H x 48″ W x 101″ D with a 55-Gallon drum feature


  • Ultra-web Flame retardant or spun bound filters
  • Delta-P & Delta-P Plus controls
  • 5, 7.5, 10, 15 HP fan motors
  • Fan silencer
  • Fan damper
  • Hose drum pack


There are no reviews yet.

Be the first to review “Donaldson Torit – Downflo Evolution – Model DFE 3-12”

Additional Resources:

Product Literature #1  Donaldson DFE Brochure

Product Literature # 2  Donaldson Torit General Brochure

Product Literature # 3 Donaldson Torit DFE 2-4 & 3-6 Manual

Product Literature # 4 Donaldson Torit DFE 2-8 to 5-80 Manual
