Downdraft Bench with Top and Back Ventilation

Please call us for Quantity Discounts!
All prices are subject to change.


Performance: 4000 CFM

Features include:

  • The unit shown has a 30″ x 60″ work surface.
  • Filtration system located within the table, cleanout tray, Magnehelic gauge, and filter access door.
  • The filtration system can be modified for dust and smoke/fume.
  • Filters include pleated pre-filter MERV 8 and a pleated final filter MERV 14
  • The table surface has 1/2″ x 3/16″ perforations and is constructed of 16 HA galvanized steel.
  • Table capacity is 500-1,000 lbs.
  • The unit is prewired with a thermally protected manual motor starter, two single-phase outlets, and is fully assembled.


  • Casters
  • HEPA filter MERV 17 99.97%
  • Table sizes up to 96″
  • Heavy duty table surface

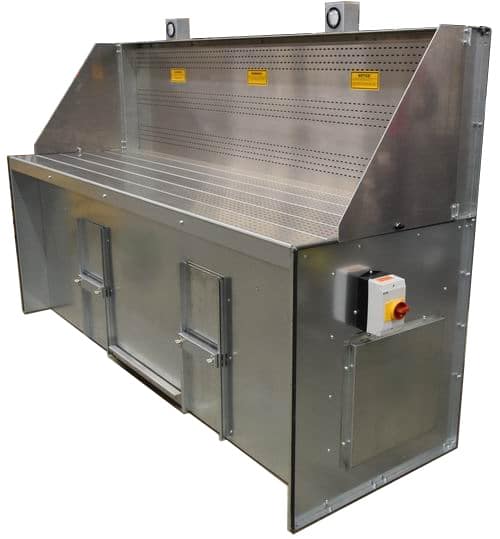

Pictured is a DualDraw 30″ x 96″ downdraft table with vented back


There are no reviews yet.

Be the first to review “Downdraft Bench with Top and Back Ventilation”

Additional Resources:

Product Literature: DualDraw BG Downdraft Table with Vent Back Brochure
