Donaldson Torit – Downflo Evolution – Model DFE 3-6

Starting at $20,360.00

RAPID BUILD means 5 days to ship!

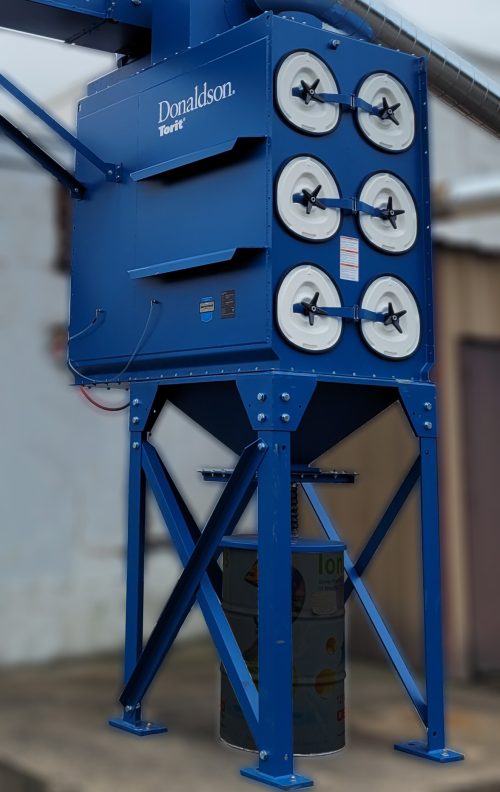

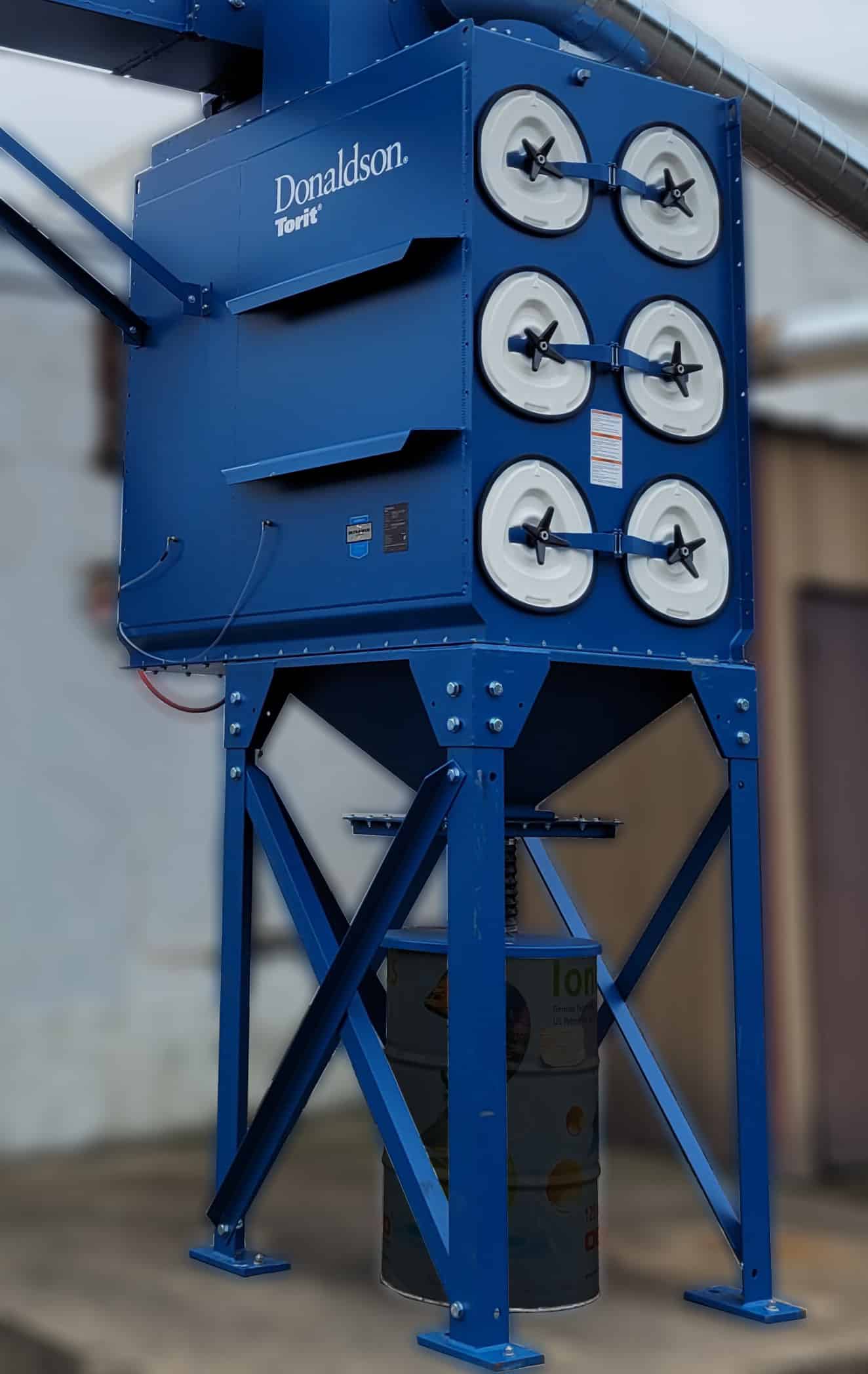

(Photo is of a typical Model DFE.  Confirm unit size for this unit in the text below.)


Ships in 5 days!

Description

Performance Range: 1,500 to 6,000 CFM

DFE 3-6 (product code AG8408402) includes:

  • Standard legs and hopper to accommodate a 55-gallon drum.
  • 55-gallon drum cover included (drum by others).
  • Left and right-hand side outlet.
  • Six (6) Ultra-Web Filters – 1524 sq. ft. filter media.
  • Covered power hole for integral fan mounting ( fan is not included in pricing but is available depending upon horsepower required).
  • 3 HP Motor with exhaust grill.
  • Standard paint finish.
  • Type 4 pulse control box w/ timer board and Magnehelic gauge (shipped loose).
  • Sprinkler tap on the front face.
  • The size of the unit is 130″ H x 48″ W x 75″ D with a 55-Gallon drum

Options:

  • Ultra-web Flame retardant or spun bound filters
  • Delta-P & Delta-P Plus controls
  • 5, 7.5, 10, 15, 20 HP fan motors
  • Fan silencer
  • Fan damper
  • Hose drum pack

Reviews

There are no reviews yet.

Be the first to review “Donaldson Torit – Downflo Evolution – Model DFE 3-6”

Additional Resources:

Product Literature #1  Donaldson DFE Brochure

Product Literature # 2  Donaldson Torit General Brochure

Product Literature # 3 Donaldson Torit DFE 2-4 & 3-6 Manual

Product Literature # 4 Donaldson Torit DFE 2-8 to 5-80 Manual
