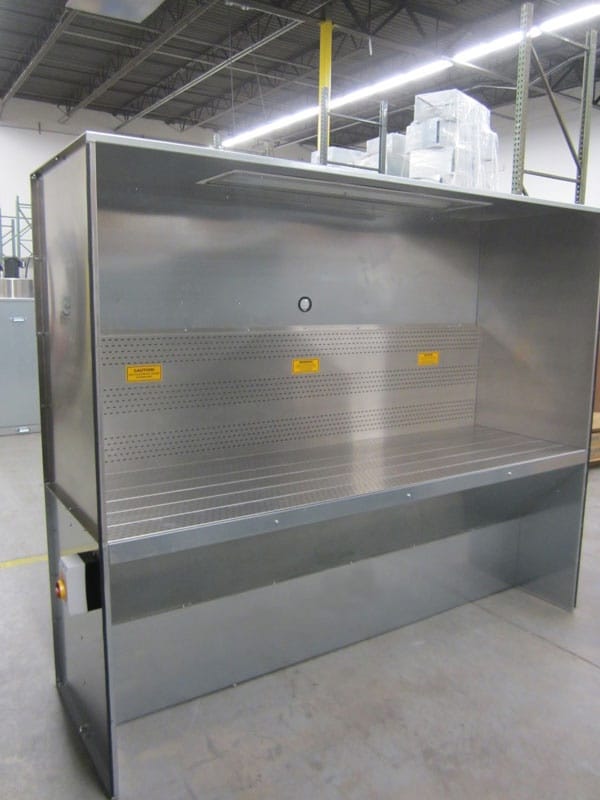

Downdraft Booths with Filtration Systems – DualDraw – Model TB3048

Starting at $7,200.00

Please call us for Quantity Discounts!
All prices are subject to change.

Read More About:

Industrial Air Filtration Systems
Dust Control Booths

Description

Performance: 2000 CFM

Included Features:

• 2 HP TEFC motor.
• Work surface is 30” x 48”.
• Filtration system located within the table, cleanout tray, Magnehelic gauge, and filter access door.
• Filtration system is modified for dust and smoke/fume.
• Filters include pleated pre-filter MERV 8 and a 10-pocket poly spun filter MERV13.
• Table surface has 1/2″ x 3/16″ perforations and is constructed of 16 GA galvanized steel.
• Table capacity is 500-1,000 lbs.
• Height is 80”.
• Standard 2 bulb fluorescent fixture with 4-bulb optional.
• Unit is prewired with a thermally protected manual motor starter and two single-phase outlets and is fully assembled.
• The uniform airflow distribution design is a patented DualDraw feature for all their tables.

Options:

  • Casters.
  • HEPA Filter MERV 17 99.97%.
  • Table sizes larger than 30″ to 96″ width.
  • 12 Ga Heavy Duty tabletop.
