Backward Inclined Blowers – AirPro Fan – Model BIQS

Description

Performance Range: 1,000 CFM to 50,000 CFM and static pressure up to 17″ w.g.

Features Included:

• Direct drive arrangement 4v (top-mounted) fan.
• Backward inclined high volume single width (BIHS) blower
• Pre-set performance ranges specifically designed for dust collection applications.
• Premium efficient 3 phase 460 V 60 Hz motor.
• Horse power range from 1.5 HP to 125 HP.
• Flanged inlet and outlet.
• Industrial enamel coat.
• 150ºF max design temperature.
• 3 year gold standard warranty.

Option:

• Carbon steel outlet damper

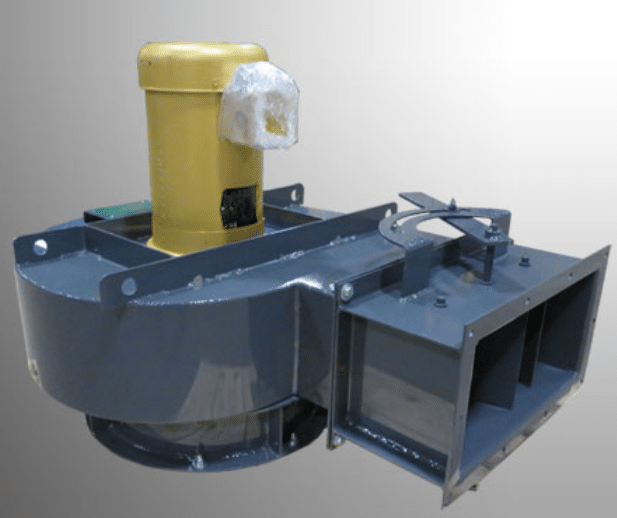

The unit shown is a AirPro BIQS size 182 with optional outlet damper.
