Performance Range: 100 CFM to 5,250 CFM and static pressure up to 60″ w.g.
- Heavy duty industrial housings are continuously welded heavy gauge steel.
- Aluminum and steel wheels are standard.
- Motor, drive, and bearings are readily accessible for easy wiring, installation, adjustment, and lubrication.
- Available in arrangement 1, 4, 8, 9 & 10.
- Industrial-grade powder coat enamel finish.
- Dynamically balanced at the factory prior to shipping.
- Supplied packaged, assembled and ready to install.
- Spark resistant construction
- Companion flanges
- Drain pipe coupling
- Access door
- Vibration isolator
- Combination drive guard and weather cover
- Drive guards
- Inlet & outlet guards
- Slip or venturi inlet
- Fan silencer
- Inlet filter
- Adjustable support leg
- Outlet damper
- Flexible connectors

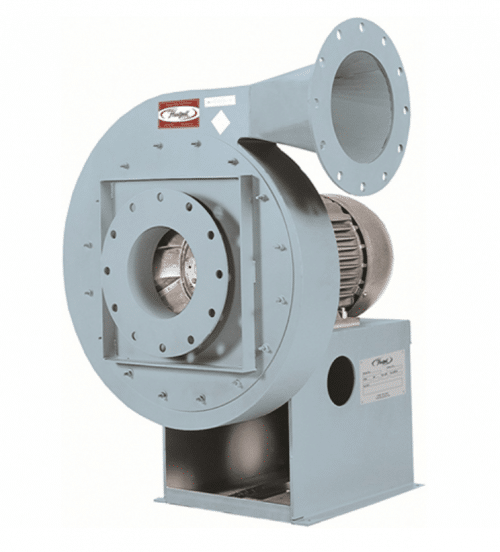

The unit shown is a Series 07T size 19-22 arrangement 4 (direct drive).
