Laboratory Source Capture Extraction Arm – MOVEX – Model ME 100 with Flat Screen

Many options! Please call for prices.

Please call us for Quantity Discounts!
All prices are subject to change.

Read More About:

Dental Office Ventilation with Extraction Arms
Extraction Arms
Laboratory Extraction Arms

Description

Performance Range: 120 to 180 CFM exhaust flow

Features Include:

  • 4″ diameter arms
  • Arm lengths up to 106″
  • Working radius up to 80 inches with standard design (based on arm diameter)
  • Can be mounted on tabletop, ceiling, or wall
  • Six (6) interchangeable hood designs for specific applications
  • Standard construction includes polypropylene joints and anodized aluminum tubes
    • Polypropylene (PP) version available for applications evacuating corrosive contaminants in high concentrations.   Joints and tube constructed of polypropylene. All metallic parts that are in contact with airflow are made of stainless steel
    • ATEX version is available for applications evacuating airborne contaminants where there is a requirement for the ATEX-classified environment. Conductive polypropylene joints and tubes. All metallic parts that in contact with airflow are made of stainless steel. Static electricity is diverted to separate earth connections. The product meets category 2 of the ATEX directive (94/9/EC) for gases and dust.
  • Supplied full assembled

Typical applications:

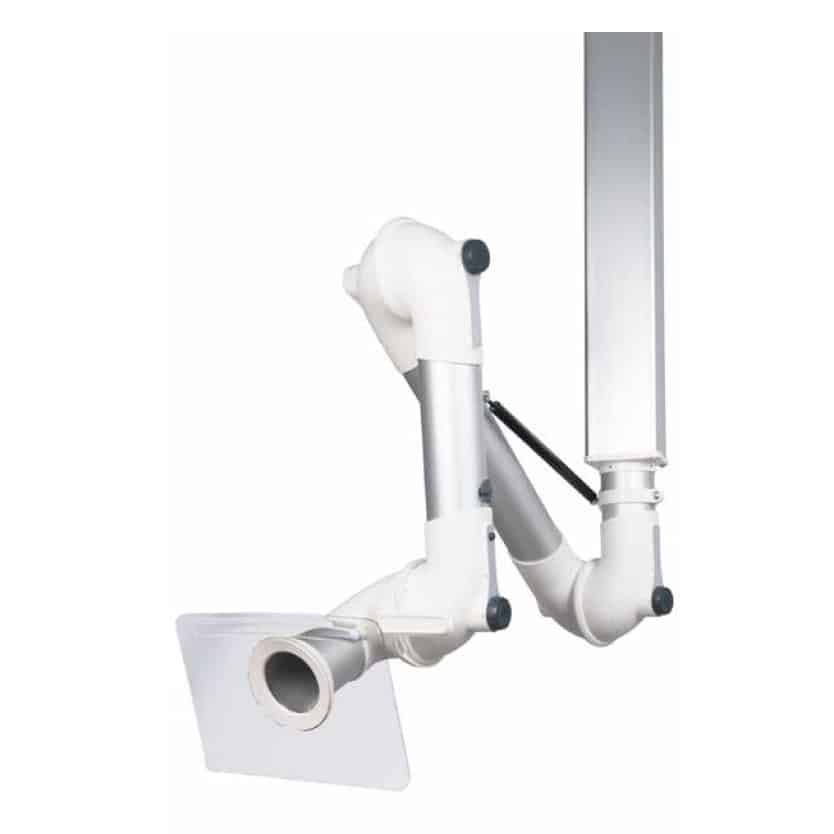

The image above is a MOVEX Model ME 100 in 4″ diameter and 5-foot length paired with a flat-screen hood and ceiling bracket.

Reviews

There are no reviews yet.

Be the first to review “Laboratory Source Capture Extraction Arm – MOVEX – Model ME 100 with Flat Screen”

Additional Resources:

Product Literature 1: MoveX ME 100 Brochure
