Weld Fume Extraction Arm

Please call us for Quantity Discounts!
All prices are subject to change.

More SysTech Documentation:

Industrial Air Filtration Systems
Extraction Arms

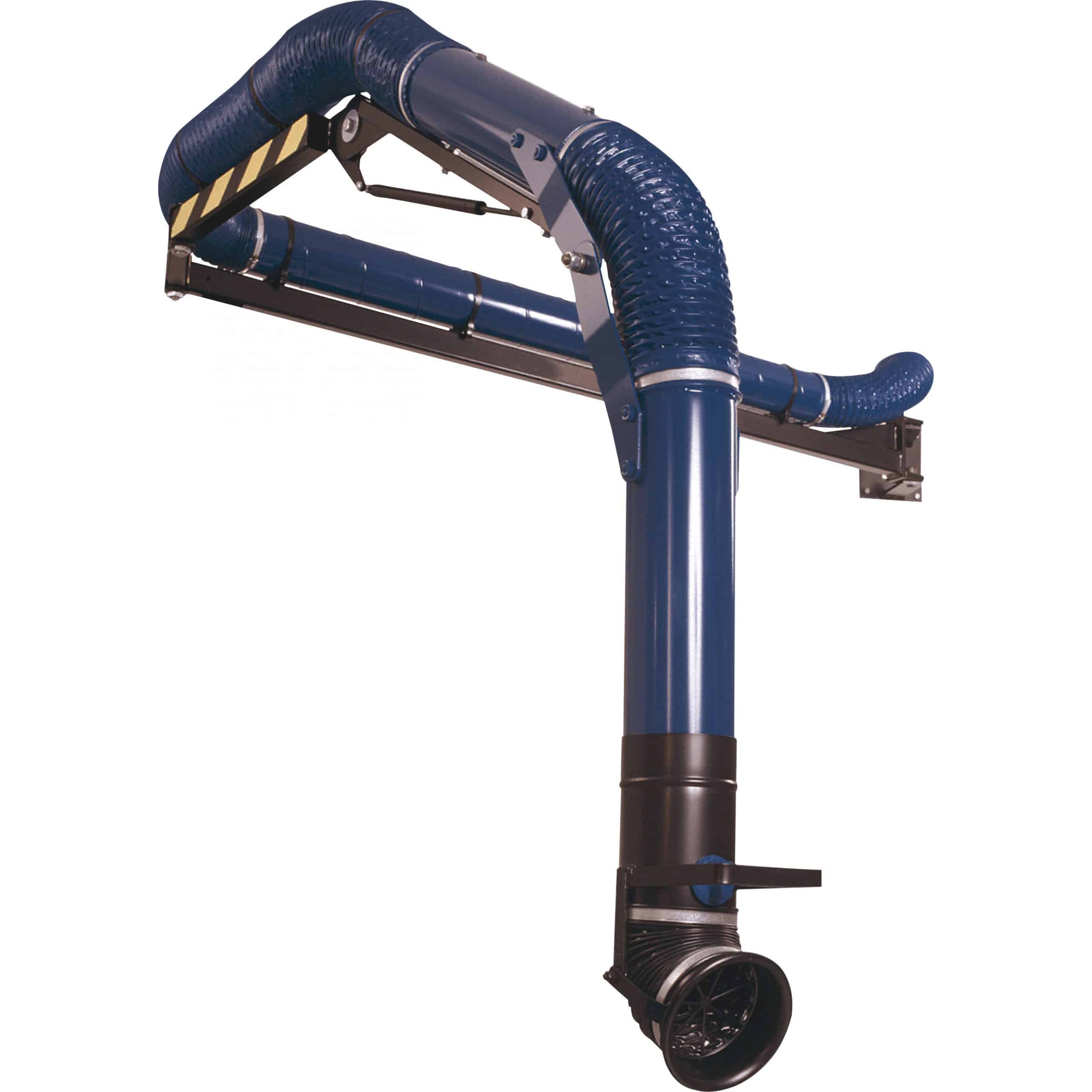

(Shown is a Movex RZX 4500, 6-inch diameter and 22 feet in length with wall bracket.)

Local extractor with extended reach for welding stations

  • 4, 5, and 6-inch diameter sizes
  • Available in lengths of 16, 22 and 28 feet
  • Airflow from 300 to 850 CFM
  • Rolled manufactured steel tubes with smooth internal surfaces creates less pressure loss
  • Unique, horizontal double joint for a wide working radius
  • Easily maneuvered and with high positional stability, even at full extension
  • Flat screen or conical hood with halogen light option
  • Hose is PVC coated polyamide with steel spring inner coil and powder coater steel tubing
  • Gas spring balances the weight of the arm
  • Flexible suction nozzle rotates through 360˚ and can be positioned at a 90˚ angle
  • External supporting arms
  • Supplied partially assembled for ease of installation
