Industrial Fans & Blowers
How do we know fans? It’s what we do.
Categories of Fans & Blowers
Fans and blowers are categorized by their airflow design. The predominate categories for industrial fans and blowers are centrifugal and axial flow. Centrifugal fans direct the air at right angles to the airstream as it enters the inlet of the fan. Axial fans move the air along the same axis as the airflow out the outlet of the fan. We include a third category of Specialty Fans which include both centrifugal and axial designs used in special applications or specific industries.
Industrial Fans & Blowers Gallery
Centrifugal, Axial, or Specialty Fans?
Centrifugal and axial fans are further defined by the wheel or the impeller that is selected. Differing wheel geometry changes the performance that can be achieved, the obtainable efficiency and thus the horsepower requirement. When selecting a wheel, what is in the airstream is critical. Clean airstreams wheels are selected on CFM and pressure requirements. Axial fans are most often clean air fans. When material and gases are in the airstream, factors like chemistry, explosivity, material loading, particulate size and density, and abrasive characteristics of the dust are important considerations. This is where centrifugal fans are predominating as there is more flexibility with centrifugal fans.
As mentioned, a third important category includes those fans proven to meet the requirements of specific applications. These are specialized designs that perform reliably in extreme conditions. We call these Specialty Fans. Certain applications such as paper trim or high temperature in the airstream necessitate a specific wheel selection, fan construction or mechanical design.
OEM Cast Aluminum Pressure Blowers ready to ship.
SysTech has had experience with all categories of fans and blowers including:
- Cast aluminum pressure blowers, axial and vaneaxial fans, industrial exhausters, roof ventilators, centrifugal fans and marine duty fans for a host of air moving requirements

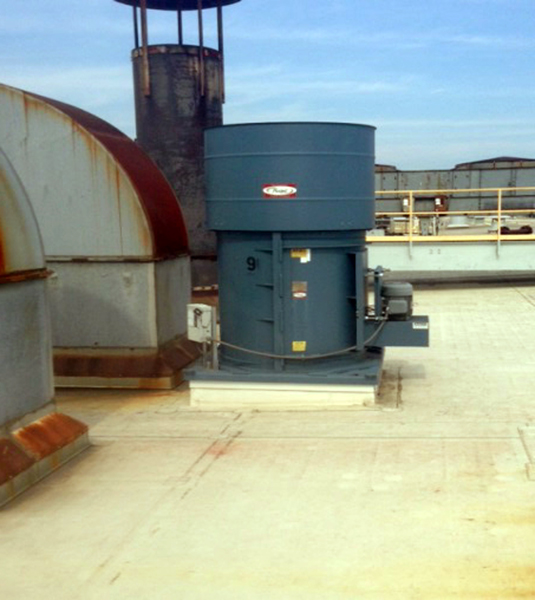

- Building ventilation systems including wall panel fans and rooftop exhausters
- Engineered fans and blowers applied to abrasive, high temperature, material handling and paper trim “chopper” applications
- Corrosive environment fans constructed of FRP, PVC, SS, polypropylene, and Kynar materials
- Multistage, positive displacement and regenerative blowers used in vacuum and pneumatic conveying systems design
- OEM fans where catalogued equipment needs to be modified to fit into a client’s product
- Dust collector and mist collector fans
Classification of an Industrial Fan
Our application experience with fans and blowers includes industrial blowers, FRP fans for corrosive environments, and high pressure blowers for a wide range of applications. Our fan and blower equipment classification is as follows:

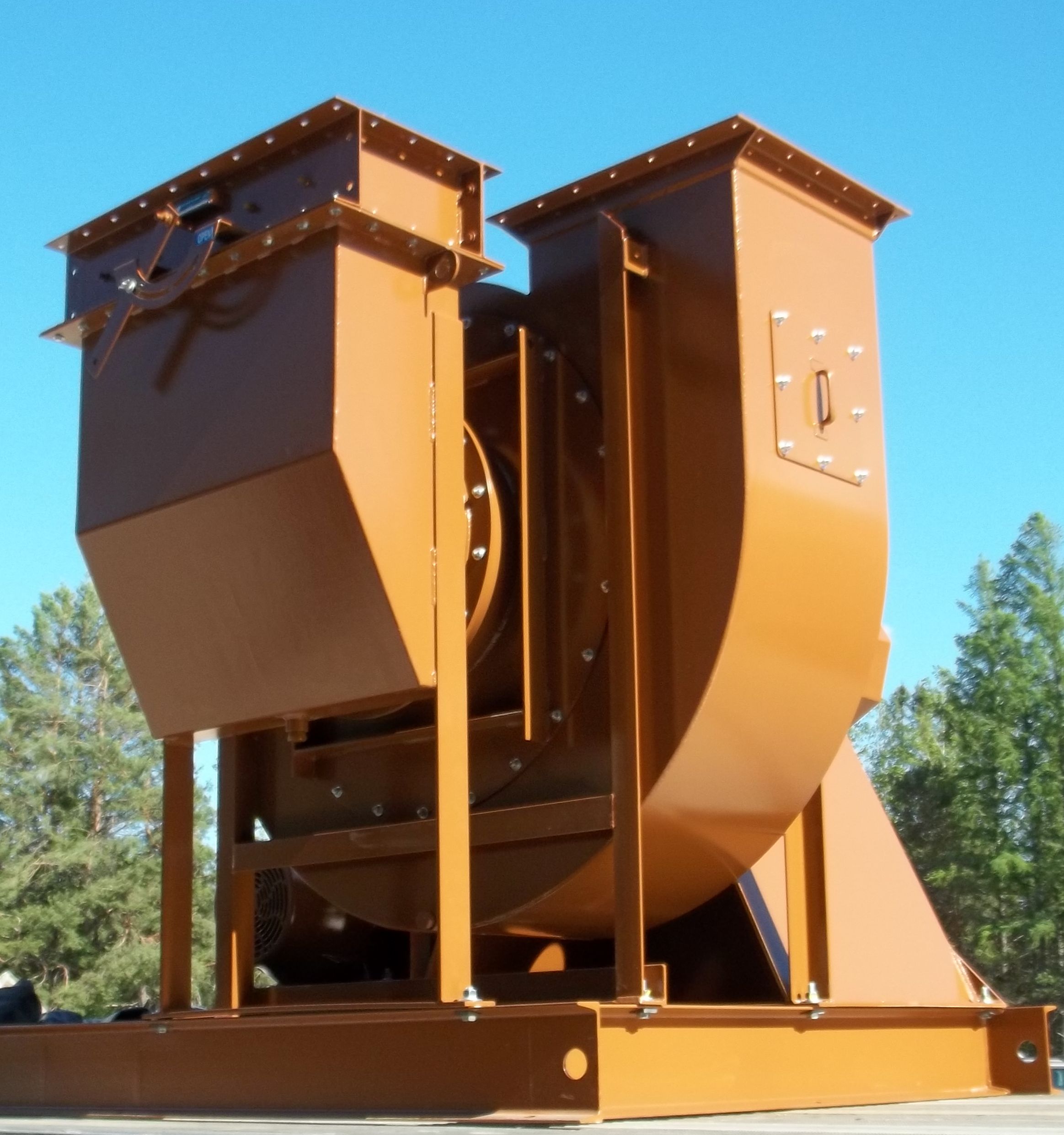

Industrial Exhausters – These are typically centrifugal fans, of heavy-duty construction applied to a process exhaust airstream. Fan wheels are designed and selected based on the airstream and the environment surrounding the fan.
Pressure Blowers – Pressure blowers are characterized by high pressure with low airflow as compared to other centrifugal industrial fans with blower wheel speed a minimal 3600 rpm. They are in single or multi-stage configuration with positive displacement packages for pneumatic conveying systems.
Fiberglass Exhaust Fans – In corrosive environments where factors such as high humidity and aggressive chemicals are present, SysTech will select the materials of construction that perform best in your corrosive environment. Plastic fans in FRP, PVC and CPVC construction are available options.
High Temperature Fans – When temperatures exceed 200 degrees fans and blowers are considered high temperature in direct drive configuration. Where high heat processes up to 2000 degrees F, for ovens and kilns, arrangement changes as does metal, insulation and auxiliary features. High temperature fans need concise specifications to be successfully applied.
OEM Fans – Original Equipment Manufacturers require fans and blowers that need to be redesigned to fit into their machinery or process. Standard products just won’t do it. SysTech will assist with the process and suggest solutions to the application.
Industrial Fan Wheel and Propeller Terminology
Fan wheels or propellers determine the model name of a fan, and their abbreviation would be part of the model number. Example HDBI model is a Heavy Duty Backwardly Inclined fan and AF would be an airfoil bladed wheel. Listed below are those we commonly encounter and is not meant to be an all-inclusive list.
Airfoil – Blade cross section is that of an airplane wing. Highly efficient, clean air design. Typically applied in medium static pressure applications such as general ventilation, process heating and biomass production. Airfoil fan wheels are compatible with all types of control methods. Both centrifugal and axial fans use the airfoil designed blade.
Backward Curved – Blades are slightly curved and angled backwards in the wheel. Designed to handle clean air at high volumes and medium static pressures. Typically used in a variety of industrial applications such as pollution control, cooling systems, and odor control due to its high-volume air movement capabilities.
Backward Inclined – Straight single thickness blades angled backwards. Smallest wheel diameter for given cubic feet of air per minute. Easily coated or made of special alloys. Perfect for projects such as dust collection, pollution control and oven exhaust.
Radial Tip – Blades are slightly curved and angled forwards. A self-cleaning fan wheel with low wear rates, radial tip fan wheels are designed for higher specific speeds. This allows them to be used in heavy duty applications such as forced draft, incineration and abrasive airstreams.
Radial – Flat blades arranged in a radial pattern off the hub. Medium air volumes at medium to high static pressure. These wheels are typically used in a variety of industrial applications such as material handling, pollution control and dryers.
High Pressure Radial – Straight blades, engineered for low-to-medium air volumes at high static pressures. These wheels will typically include, but are not limited to, chemical processing, pneumatic conveying, and combustion air.
Paddle Wheel – Straight, reinforced blades without shrouds. Designed to handle moderate air volumes at high static pressures. Typically used in material handling, dust collection and pneumatic conveying applications that require a more rugged design.
Fixed Blade Axial Propeller – Axial Fan wheel, typical cast aluminum airfoil design.
Adjustable Pitch Axial Propeller – Axial impeller that allows each blade to be adjusted to a different angle. This allows a change to the performance of the fan in the field.
Stamped Blade – Fan blades can be stamped on some light duty axial fans for commercial applications.
In-line Centrifugal – Centrifugal wheels are inserted in a tube making the fan an axial design. These are used to gain higher static pressures than a propeller bladed axial.
Industrial Fan Manufacturers
We represent the leading manufacturers of fans and blowers, and offer a complete selection of products to meet the needs and requirements of a variety of processes and applications.
AirPro Fan & Blower Company
AirPro is the complete source for industrial fans and dampers. Designed for performance and longevity, AirPro fans are engineered to meet virtually any application requirement. AirPro manufactures a comprehensive standard product line along with high temperature, paper trim handling, and API designs. They also specialize in the development of custom fans, built to necessary specifications.
American Coolair Corporation
Coolair has been developing quality building ventilation systems for over 75 years. The comprehensive axial fan product line includes complete building ventilation systems for a diverse range of industries.
Cincinnati Fan and Ventilator Company, Inc.
For over 50 years Cincinnati Fan has been manufacturing cast aluminum and fabricated steel industrial fans, blowers and exhausters. In addition to their catalogued products, which include fans that range from ¼ to 125 horsepower, Cincinnati Fan manufactures custom models, designed to meet the specific needs and requirements of most applications.
Daniels Fans
A Cincinnati Fan company, Daniels designs and manufactures industrial high temperature fans in both centrifugal and axial configurations. Options allow airstream temperatures up to 2200 °F and include insulated double wall housings, direct or belt drive, multiple impeller designs and gas tight construction.
Envira-North Systems, Ltd
Envira-North is Canada’s largest supplier of industrial/commercial big ceiling (destratification) fans and claim 75 per cent of the Canadian market for industrial/commercial destratification and ventilation fans. Their HVLS big fan product and systems enable buildings to perform better; save on heating, cooling, mechanical operating costs and provide a healthier environment for the occupants of the structure.
Hartzell Air Movement
A leader in industrial ventilation, Hartzell produces innovative and efficient air moving products that are known for exceptional quality and reliability. The Hartzell product line includes fans for both general and process ventilation including a complete line of axial fans, centrifugal fans and blowers, an extensive fiberglass product line, and a complete line of make-up air and heating equipment with a full range of options and accessories. Not limited to CS or SS, they offer a complete line of FRP fans, blowers, louvers, and dampers.
Industrial Plastic Fan LLC
IPF manufactures quality PVC blowers and polypropylene blowers for a variety of industrial applications. An ISO 9001-2000 compliant manufacturer, IPF develops fans to precision tolerances, with well-balanced impellers for whisper quiet operation. IPF plastic fans are well suited for use in corrosive environments, with high degrees of humidity and moisture, as well as exposure to caustics, chlorine, or acids.
SysTech is ready to discuss your industrial fan and blower needs.
