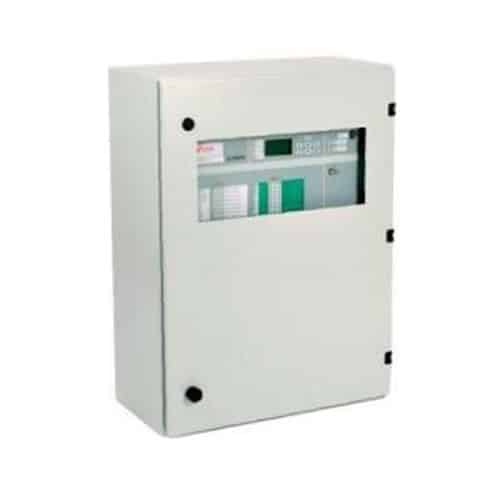

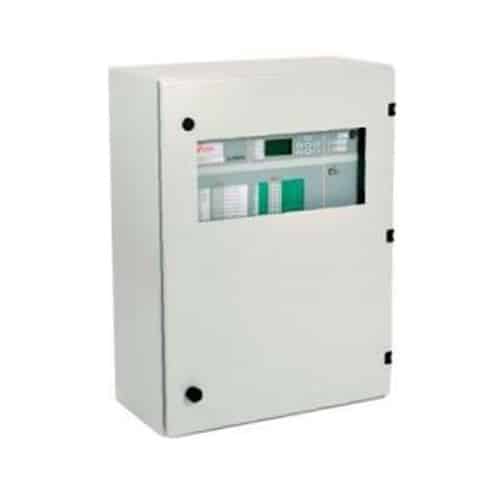

IEP Technologies – EX8000™ Multi Zone Control Unit

Contact for Pricing.

Please call us for Quantity Discounts!
All prices are subject to change.

Read More About:

Explosion Protection
Explosion Isolation

Description

The Multi Zone Control Unit CIE (Control and Indication Equipment) assumes both control and system verification functions. The whole electronic system is integrated on a modern and reliable board with redundant circuitry. Power supply, emergency battery and connection technology are accommodated within a cabinet.

Any signals emerging from the explosion pressure, spark, flame or temperature sensors employed are recorded, tested and evaluated by the CIE. Depending on the configuration of the explosion protection system the related protection measures are activated selectively. The monitoring and activation lines are continuously checked with regard to wire breakage, earth fault and short circuit. In addition, an automatic self-test system ensures that all important functions of the CIE are monitored electronically. In case of power failure the emergency battery automatically takes over without interruption. Power can
be sustained for approximately 4 hours.

All fault and alarm messages are displayed by both light emitting diodes (LED) and a liquid crystal display (LCD) and can be forwarded by means of potential-free contacts.

Advantages:

  • Compatible with IEP Technologies sensors, HRD suppressors and mechanical isolation valves
  • Automatic self-test function to check function standby
  • Redundant electronic system
  • Functional safety SIL 2
  • Readable memory with date stamp
  • Configuration options for various process requirements
  • Free assignment of potential-free contacts in coordination with process-control
  • Arming and disarming of individual plant sections
  • Fault and alarm display with light diodes and text indicators, allowing easy correlation
  • Built into robust standard floor or wall cabinets

Specification:

Input Voltage: 230 VAC, 50/60 Hz.
Option: 110 VAC, 50/60 Hz
Emergency Power Supply: 2×12 V, 15 AH.
Power failure bridging time: 4h
Cabinet: Powder-coated steel cabinet wall-mounted.
Alternative: floor cabinet
Colour: grey, RAL 7035
Dimensions: 600(w) x 800(h) x 220(d)
Ambient Temperature: -10°C – +40°C
Consumption: 250 watts



Additional Resources:

Product Literature # 1 Hoerbiger Safety Solutions

Product Literature # 2 Protecting Critical Facilities Against Explosions

Product Literature # 3 EX 8000 MultiZone Control Unit

Product Literature # 4 IEP Capabilities Brochure
