IEP Technologies – SmartDS – Dynamic Explosion Detector System

Contact for Pricing

Category:
Please call us for Quantity Discounts!
All prices are subject to change.

Read More About:

Explosion Protection Systems
Explosion Isolation
Candy Maker Retrofits Dust Collection Systems with Explosion Suppression and Isolation

Description

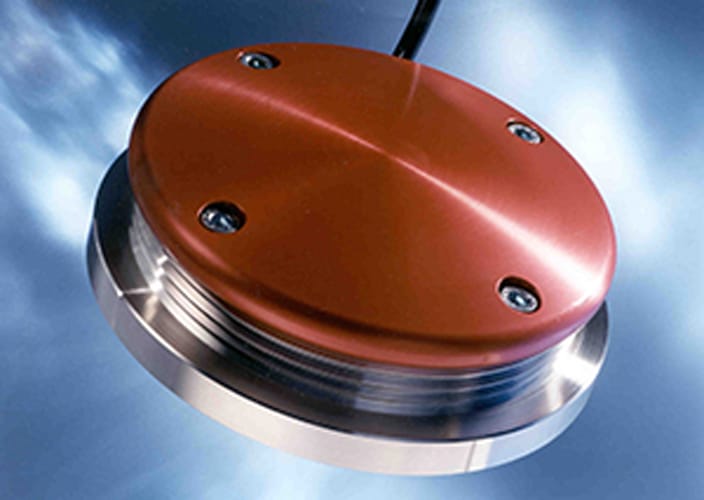

The IEP Technologies SmartDS comprises a MEX-3 dynamic explosion pressure detector and a FAB-4 Field Connection Box. The MEX-3 is designed to be flush mounted to protected process vessels using the MEX-3 stainless steel mounting flange. The FAB-4 Field Connection Box processes the data collected by the MEX-3 detector and generates the appropriate alarm or trouble/fault signal. SmartDS Evaluation Software can be used to download detector settings, event logs, and both short term and long term pressure data to a personal computer in order to facilitate event investigation and analysis– a key feature.

Reviews

There are no reviews yet.

Be the first to review “IEP Technologies – SmartDS – Dynamic Explosion Detector System”

Your email address will not be published. Required fields are marked *

Advantages:

  • Dynamic rate of rise pressure sensing differentiates between real explosion events and process pressure fluctuations.
  • Three separate algorithms that interrogate pressure data to secure detection whilst providing excellent false alarm immunity.
  • High reliability – dual pressure sensors provide secure detection and redundancy together with third party certification to SIL2.
  • Event history memory records pressure data before, during, and after explosion protection system activation facilitating post-event interrogation and analysis.
  • Powerful User Software Interface for graphical representation and analysis of recorded pressure data.
  • Hygienic design with O-ring seal and stainless steel detector body resists harsh process environments.
  • Field programmable to accommodate process changes.
  • Programmable static pressure pre-alarm alerts operator of process problems.
  • ATEX Approved and CE Marked.
